4 Axles 80 Ton Heavy Duty Lowbed Semi Trailer 100 Ton Lowboy Trailer
Application: our lowbed are widely used in heavy machines transportation. We produce very durable ones with high strength to meet the transport needs.We use high strength steel material to ensure the capacity, the load can be up to 100 to 120 ton payload. It can be used to transport non-detachable objects especially construction machines such as excavators, loaders, bulldozers.
Our products can be customized according to customer needs, mainly including 2 axle, 3 axle, 4 axle, 5 axle.
Features
• Finite Element analysis used in vehicle to promote product performance.
• Strong Loading Capacity 30-100 Tons
• High Stength full thickness Steel,titanium content of 0.98‰, which ensure Beam and frame’s Toughness and strength.
• 42 tough ribs design, Ensure the safety and carrying capacity of trailer.
• Uniquely designed low-load platform provides lower transport center of gravity and smoother transportation.
• Lowbed Trailer Main Parts Warranty Period Reach 24 Months.
• Two parking lights
• Two back-up lights
• Plate number light
• Two stop and tail lights
• Rear directional lights
• Reflectors.
• All lighting system shall be in accordance with International Uniform vehicle Traffic Regulations and International motor vehicles safety Regulations A practices.
• All lights recessed or otherwise provided with adequate guards to prevent accidental damage.
N.B. All wirings that run through cross members shall be adequately protected from grounding.
All wires shall be of adequate size for the intended purpose and be enclosed in non-metallic loom
Advantage
Thickened suspension and leaf spring can adapt to Africa bad road condition.
Reinforced gooseneck, increase lowbed trailer paylaod capacity.
lowbed trailer special design spare tire carrier
Packaging: nude package
Shipping: 40ft container, bulk cargo, ro-ro ship
Port: Qingdao, Tianjin, Lianyungang, Shanghai
Specification
| Dimension: L*W*H | 17600*3200*1600(mm) |
| Tare weight | 10000kg |
| Max payload | 80t |
Configration
| Lanidng Gear | JOST A400 ,two speeds |
| Kingpin | 90# mounting type |
| Brake system | Dual line pneumatic brake system |
| ABS | without |
| Brake Chamber | Type 30/30 spring brake system on front axles |
| Suspension | mechanical suspension |
| Axle | FUWA axle, 13 ton capacity/set,3PCS |
| king pin | Jost, 90# mounted type |
| ladder | 1 pair, width 800mm |
| Tire | 12R20-18PR,16pcs |
| Rim |
8.5-20,16CS |
| Main Beam | 550/20/10/20 |
| side beam | 25# channel steel |
| cross beam | 12# channel steel |
| Tool Box | 1 pcs with 1 meter length |
| Spare Tire Carrier | 2 units |
| Floor | 4mm checked floor |
| Paint | As customer's request |

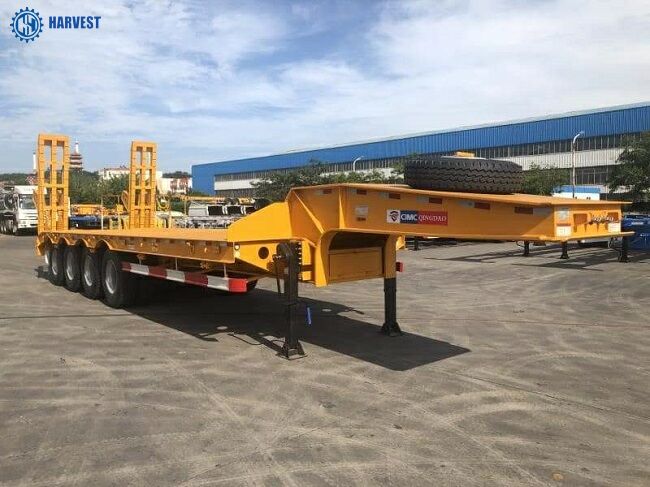

Lowbed Pictures
Product Tags:
|
|
Weight 10000kg 4 Axles Max Payload 80 Ton Lowbed Heavy Duty Semi Trailer Images
|
